What makes a soundproof door?

We’ve talked a lot about soundproof doors in the past – this time we thought that we would look at what actually makes a door soundproof.  To do this we’ll begin by reviewing what sound actually is, before looking at how barriers to the transmission of sound (such as soundproof doors) actually operate.

What is sound?

Sound is a form of energy that is created when air is disturbed such that the air pressure changes and radiates from the source of the sound in waves.

These sound waves vibrate at different frequencies, and are measured in cycles per second (Hertz).  The faster that a sound wave travels past a given point, the shorter is its wavelength and the higher is its frequency.

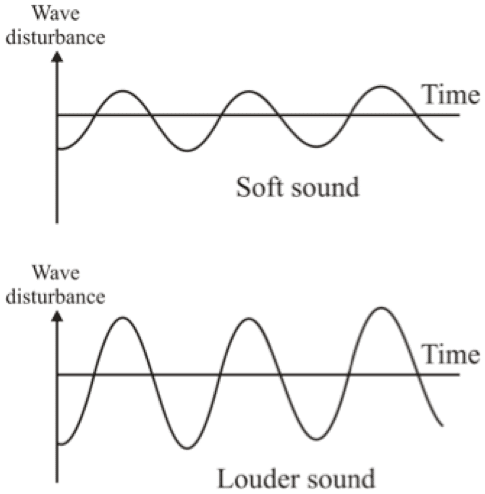

The “loudness” of the sound – which is a relative not an absolute term, and which is also impacted by other sounds – is caused by vibrations in the medium through which the sound is travelling (typically, in our experience, air).  The stronger the vibrations, the greater the amplitude.  Here’s a diagram to make things clearer:



How do sound barriers operate?

A sound barrier reduces the amount of noise that can pass through it.  You’ll be aware that closing a normal door will reduce the amount of noise coming through; similarly a standard fence will reduce noise coming from the other side.  These will not stop all noise, of course – since sound waves flow like water they will find other ways of getting through or round unless more sophisticated measures are taken.  What might such measures be?

Sound insulation and sound absorption

Sound insulation is about putting up an acoustic barrier.  Sound absorption describes the ability of materials to restrict the reflection of sound, doing this by converting the energy of the sound into heat.  The greater the sound absorption the shorter the reverberation time or echo that is produced.  Sound absorption is measured as a co-efficient from 0 to 1.0, with the best rating being 1.0.

For the most effective sound-proofing, you should consider using both mechanisms.

To put things into perspective, doubling the mass per unit area of a wall or door will improve its insulation by about 6 dB – this is why heavy materials such as concrete are very effective soundproofing materials.  One way of achieving good insulation using less mass (since concrete doors can be unwieldy!) would be to use a double-leaf partition (two walls separated by an air gap filled with a sound absorber).

Put another way, sound insulation affects people in the room or workspace adjoining a sound source, while absorption affects those within it.

	Sound absorption	Sound insulation
Control	Sound reflection within a room or workspace	Sound transmission between rooms or workspaces
Effect Upon	Performing and listening conditions	Privacy and disturbance
Benefits	Room or workspace occupants	Room or workspace neighbours

Soundproof doors

Now that we’ve looked at what sound is, and how to put up barriers to it, let’s have a quick think about soundproof doors.  Clearly there are several environments where it is necessary to minimise (if not eliminate) unwanted sounds (e.g. recording studios), but people still need to get in and out of these environments … and therefore doors are needed.  And by their very nature these doors must present an opportunity for sound to escape as they have to have an opening mechanism … which will have gaps etc.  Soundproof doors can deal with these gaps by having seals around the door edge, thus putting up a sound barrier.

Speak to the experts

As always it’s important that you speak to the experts, who can give you sound (no pun intended) and practical advice based upon years of successful installations.
